Features

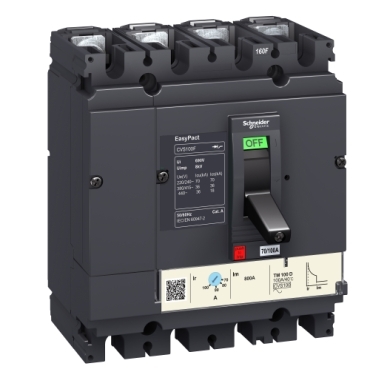

The EasyPact CVS range is the Designed to meet the requirements of the majority of the applications, the new EasyPact CVS circuit breakers deliver a level of performance and cost-saving functionality that is unusual in their price range.
Features:
- Rated current from 100 to 800 A
- Breaking capacity from 25 to 50 kA at 400/415 V
- 3- and 4-pole versions
- 3 frame sizes (100-250 A, 400-630 A and 800 A)
- Thermal-magnetic and electronic protection available for the entire range
- Extended, adjustable thermal protection from 0,7 to 1 times (TMD) or 0,5 to 1 times (electronic) the rating of the trip unit
- Common accessories and auxiliaries with other Schneider Electric MCCB offers (up to 630A)
- Suitable for isolation
- Earth-leakage protection achieved by installing a Vigi module or a Vigirex relay
- Earth Fault Protection through GFP modules to protect electrical distribution network against fire Compliance with IEC 60947-2
- Certifications: GOST, CCC, CCS
Benefits
Get the performance you need, at a cost-effective investment, with the quality you demand:
- Exceptional feature set including extended current limiting capacity and adjustable thermal protection
- Simplicity of selection, purchasing, stocking and installation
- IEC compliant, internationally certified offer, delivers Schneider electric commitment to quality
Applications
Protection and management of LV electrical installations for common electrical distribution applications in small and medium-sized commercial or industrial buildings.
