Plugs & Sockets

Main

range

PratiKa

product or component type

Socket

device short name

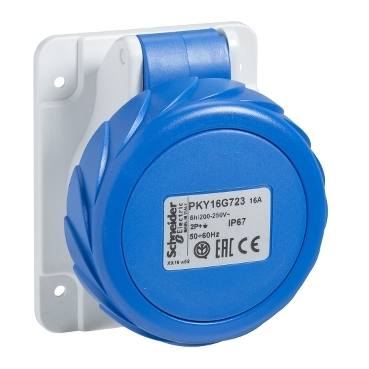

PratiKa socket

plug, socket category

Low voltage

poles description

2P + E

network type

AC

outlet standard

Industrial

Complementary

mounting mode

Panel-mounted

plug, socket, control station shape

Straight

[In] rated current

32 A

[Ue] rated operational voltage

200…250 V

network frequency

50/60 Hz

ground lug clockwise position

6 h

plug, socket material

Housing: self-extinguishing engineering polymer

contacts material

Sleeves: brass

connections – terminals

Fast connection

cable cross section

2.5…6 mm²

net weight

0.2 kg

base dimension

90 x 100 mm

height

100 mm

width

95 mm

depth

127 mm

colour

Grey (RAL 7035)

voltage colour

Blue

Environment

standards

IEC 60309-1
IEC 60309-2

IP degree of protection

IP67 conforming to IEC 60529

IK degree of protection

IK08 conforming to EN 62262

fire resistance

850 °C conforming to IEC 60695-2-1

relative humidity

50 % at 40 °C
70 % at 30 °C
90 % at 20 °C

ambient air temperature for operation

35 °C ( 86400 s )

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Weight

221.0 g

Package 1 Height

10 cm

Package 1 width

9 cm

Package 1 Length

7 cm

Unit Type of Package 2

S03

Number of Units in Package 2

18

Package 2 Weight

4.978 kg

Package 2 Height

30 cm

Package 2 width

30 cm

Package 2 Length

40 cm

Unit Type of Package 3

BB1

Number of Units in Package 3

6

Package 3 Weight

1.497 kg

Package 3 Height

12 cm

Package 3 width

27 cm

Package 3 Length

26.3 cm

Contractual warranty

Warranty

18 months
