TeSys D

Main

range of product

TeSys GV2

range

TeSys Deca
TeSys Deca

device short name

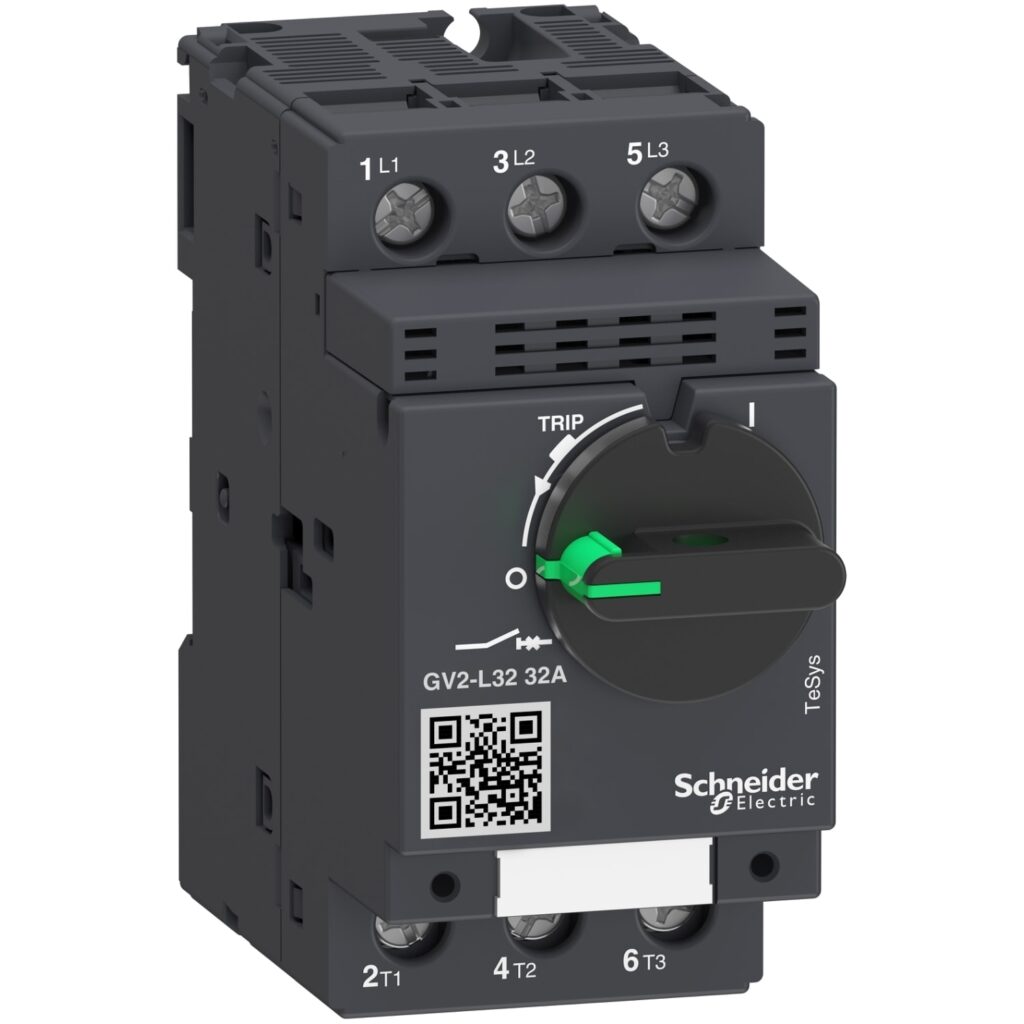

GV2ME

product name

TeSys GV2
TeSys Deca

product or component type

Motor circuit breaker

device application

Motor protection

trip unit technology

Thermal-magnetic

Complementary

poles description

3P

network type

AC

utilisation category

AC-3 conforming to IEC 60947-4-1
Category A conforming to IEC 60947-2

network frequency

50/60 Hz conforming to IEC 60947-4-1

fixing mode

35 mm symmetrical DIN rail: clipped
Panel: screwed (with adaptor plate)

operating position

Any position

motor power kW

0.37 kW at 400/415 V AC 50/60 Hz
0.37 kW at 500 V AC 50/60 Hz
0.55 kW at 400/415 V AC 50/60 Hz
0.55 kW at 500 V AC 50/60 Hz
0.75 kW at 500 V AC 50/60 Hz

breaking capacity

100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2

[Ics] rated service short-circuit breaking capacity

100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2

control type

Push-button

[In] rated current

1.6 A

thermal protection adjustment range

1…1.6 A

magnetic tripping current

22.5 A

[Ue] rated operational voltage

690 V AC 50/60 Hz conforming to IEC 60947-2

[Ui] rated insulation voltage

690 V AC 50/60 Hz conforming to IEC 60947-2

[Ith] conventional free air thermal current

1.6 A conforming to IEC 60947-4-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-2

power dissipation per pole

2.5 W

mechanical durability

100000 cycles

electrical durability

100000 cycles for AC-3 at 415 V
at 415 V

maximum operating rate

25 cyc/h

rated duty

Continuous conforming to IEC 60947-4-1

mechanical robustness

Shocks: 30 Gn conforming to IEC 60068-2-27
Vibrations: 5 Gn, 5…150 Hz conforming to IEC 60068-2-6

phase failure sensitivity

Yes conforming to IEC 60947-4-1

height

101 mm

width

45 mm

depth

78.5 mm

net weight

0.28 kg

colour

Dark grey

suitability for isolation

Yes conforming to IEC 60947-1 § 7-1-6

Environment

standards

EN/IEC 60947-2
EN/IEC 60947-4-1

product certifications

CCC
UL
CSA
EAC
ATEX
BV
LROS (Lloyds register of shipping)
UKCA
DNV-GL
RINA

climatic withstand

Conforming to IACS E10

IK degree of protection

IK04

IP degree of protection

IP20 conforming to IEC 60529

ambient air temperature for storage

-40…80 °C

fire resistance

960 °C conforming to IEC 60695-2-11

operating altitude

2000 m

ambient air temperature for operation

-20…60 °C

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Weight

284.9 g

Package 1 Height

5.5 cm

Package 1 width

8.5 cm

Package 1 Length

11 cm

Unit Type of Package 2

S02

Number of Units in Package 2

20

Package 2 Weight

6.014 kg

Package 2 Height

15 cm

Package 2 width

30 cm

Package 2 Length

40 cm

Unit Type of Package 3

P06

Number of Units in Package 3

320

Package 3 Weight

106.98 kg

Package 3 Height

77 cm

Package 3 width

60 cm

Package 3 Length

80 cm

Contractual warranty

Warranty

18 months
